eFacade PRO

Architectural solar facades, reimagined. Next-generation solar facade system engineered for performance and designed for beauty.

Ventilated rainscreen system
Sizes up to 39 x 80 in
48 Color options

Scroll down

Up to 18W/SF of integrated energy generation.

High-performing ventilated rainscreen system.

World’s first
fire-tested BIPV: NFPA 285 & EN 13501.

3rd party tested to withstand Martian environment.

Carbon-negative product lifecycle

Maintenance free
& UV resistant.

Solar Facade

Build better with architectural solar facades

Too good to be true? Not anymore.

eFacade PRO by Mitrex is a high-performance solar facade solution that blends aesthetics with cutting-edge building-integrated photovoltaic (BIPV) technology. This ventilated rainscreen system features an invisible extruded aluminum profile encasing high-efficiency solar cells, paired with a customizable facing available in 48 colors.

Now available in sizes up to 39x80 inches for optimal cost efficiency, eFacade PRO is engineered for durability, energy performance, and architectural versatility. The facing acts as a design canvas, allowing your building to come to life—seamlessly integrating solar power into your building envelope.

For even more customization, including unlimited sizes, colors, shapes, and textures, explore eFacade PRO+.

Get an Estimate

View our Portfolio

The SunRise, Alberta, Canada, 2025

See Case Study

Features

What makes eFacade PRO different

Energy

As a fully integrated BIPV system, eFacade PRO delivers high energy output without compromising on durability with ranges from 7-18W/SF. The panels generate electricity directly from sunlight, helping reduce operational carbon emissions and support net-zero energy goals.

Colors & Sizes

With a curated palette of 48 standard colors and custom sizes up to 39x80 inches, eFacade PRO allows designers to achieve striking visual results while delivering clean solar energy. The color options span earth tones, greyscales, and contemporary finishes, all while maintaining high solar performance. Custom color and size requests can be accommodated with eFacade PRO+.

Ventilated Rainscreen System

eFacade PRO is engineered as a ventilated rainscreen facade, creating a continuous air cavity between the cladding and the insulation. This design optimizes thermal performance, reduces moisture accumulation, and enhances the overall durability and energy efficiency of the building envelope.

Sustainability

As part of our mission to reduce the carbon footprint of the built environment, eFacade PRO combines energy generation with recyclable components, low embodied carbon, and efficient material use.

Certifications

Engineered to meet international impact, building code, solar, and fire standards, Mitrex systems meet safety standards including UL 61730, UL 61215, ASTM E1996 for impact resistance, and ASTM E330 for wind load performance.

Fire Safety

Mitrex eFacade PRO meets stringent fire performance requirements including NFPA 285, EN 13501 A2-s1,d0 fire classification, S134, and is engineered with non-combustible materials that support global fire safety certifications.

Performance

eFacade PRO is built with premium materials and rigorously tested to ensure exceptional durability. The system is engineered to withstand extreme weather, UV exposure, and thermal stress, making it an ideal solution for high-performance buildings across all climates.

Maintenance

Designed with longevity in mind, the eFacade PRO system resists dirt accumulation and fading. With self-cleaning glass and long-life materials, eFacade PRO requires minimal upkeep. Panels are UV-resistant, corrosion-proof, and come with a 25-year performance warranty.

Incentives

Pine Cone 13W/sf

Add sample

Learn more

Colors

Created with Design in Mind

For designers who dare to dream, Mitrex eFacade PRO panels are your palette. Whether it's solid colors, recreating metal panels, or incorporating custom graphics, our innovative surface treatment achieves the look of any surface material, seamlessly integrating with any architectural style

Balancing cutting-edge innovation with efficiency, our designs conceal solar technology in plain sight while maximizing energy output with edge-to-edge panels and hidden wiring. Architects now have the freedom to integrate solar without compromising aesthetics, creating buildings that are as powerful as they are beautiful.

Note: To request a sample, simply select a color and click on the “Add Sample” button. You can order as many samples as needed.

Download Data Sheet

PDF

Details & Returns

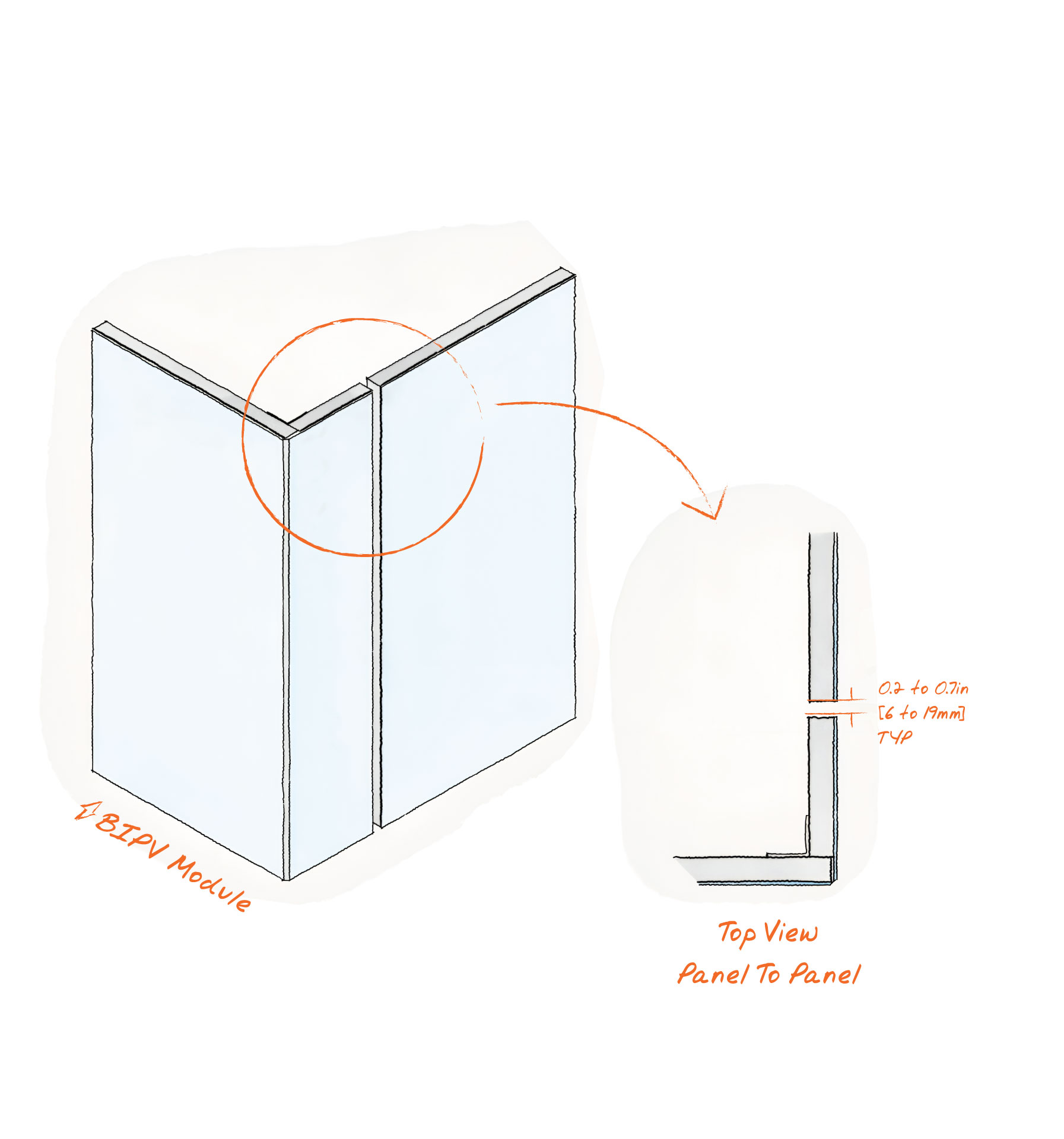

Designing finishes.
Finished with perfection

Our panel edge closures and return options are as versatile as your imagination, ensuring that every detail of your design is executed with precision.

See More Details

Comparison

Outstanding performance for ventilated facades

Fire Resistant

All finishes are classified as A2-s1-d0 under EN 13501 standards, with additional testing completed to meet NFPA 285, S134, and other international fire safety standards.

Impact Resistant

eFacade PRO panels are engineered to withstand impacts from external forces and environmental stressors, tested in accordance with ASTM E1996 impact standards and UL 61730 safety standards for solar panels, ensuring long-term durability and protection.

Maintenance-Free & UV Resistant

High-quality surface treatments eliminate the need for ongoing maintenance. eFacade PRO panels are designed to withstand extreme UV exposure and weather conditions without degradation.

Technical Specs

Product details

Download Data Sheet

Panel Sizes

Product Composition

Imperial

Metric

Size

Custom sizes up to: 80in x 39in

Custom sizes up to 2034mm x 994mm.

Weight

3.19 lb/SQFT

15.6 kg/sqm

Glass Thickness

0.24 in

6mm

Panel Thickness

1.3 in

34mm

Power Range

18 W/ft2

Refer to colors for individual powers

Up to 196W/sqm.

Refer to Colors for individual powers.

System

Ventilated rainscreen

Colors

48 colours

Glass Finish

Satin

Composition

Product layers drawing

Corners

See details & returns section

Rainscreen System

High-performing rainscreen system

Mitrex eFacade PRO features a ventilated rainscreen system that includes a high-performing air and moisture barrier, continuous insulation, adjustable sub-framing systems, and our exceptional multi-facing cladding panels.

The concealed wiring is meticulously integrated behind each panel, providing a seamless energy flow. Experience the power of solar energy in its most refined form, where every detail is crafted with precision and every line tells a story of invisible power.

CLADISHIELD – Rainscreen System

CladiShield
Rainscreen System

Claditized
Unitized System

CladiFab
Prefab System

Comparison

Compare our systems

System Render

LITE

PRO

PRO+

Colors & Patterns

Variety

5 color options

48 color options

Unlimited color options & patterns

Facing

Lightweight Panel System

Finish

Satin glass

Super satin, satin, matte, glossy, wood grain, aqualite, and more.

Thickness

0.24in (6mm)

0.13-0.47in (3.2-12mm)

Sizes & Weight

Panel Size

2 size options:

73in x 36in
(1854mm x 922mm)

73in x 18in
(1854mm x 456 mm)

Custom sizes up to:
80in x 39in
(2034mm x 994mm)

Minimum size of:
49in x 27in
(1245mm x 686 mm)

Customizable single piece sizes up to:
125in x 80in
(3175mm x 2032mm)

Preassembled pieces
up to:
420in long
(10.7m long)

System Weight

3.16 lb/sq ft
15.4 kg/sqm

3.19 lb/sq ft
15.6 kg/sqm

3.19 - 4.00 lb/sq ft
15.6 - 19.5 kg/sqm

Backing

Extruded aluminum profile with panel thickness of 1.3in (34mm)

Extruded aluminum profile with panel thickness of 1.3in (34mm).

Aluminum honeycomb with 1 or 2 in (25 or 50mm) thickness excluding facing.

Shapes

Rectangle

Customizable Shapes: Rectangle, triangle, circle, and more

System

Lightweight Panel System

Ventilated rainscreen system, eFacade LITE system

Ventilated rainscreen system

Customizable rainscreen, unitized or prefabricated system options

MOQ

150 SF (13.9 sqm)

500 SF (46.4 sqm)

5,000 SF (464.5 sqm)

Testing

3rd party tested

Code-compliant &
safety tested

Fire tested
