eFacade PRO+

Solar Facades without limits. The ultimate customizable BIPV system designed for projects that demand design freedom, premium performance, and solar energy integration.

  • Custom BIPV in any color, shape, texture, size & system.
Scroll down

Delivers up to 18W/ft² of clean solar power.

Compatible with ventilated, unitized, and prefabricated  systems.

World’s first
fire-tested BIPV: NFPA 285 & EN 13501.

Fully custom sizes, colors, textures, shapes, and layouts.

Carbon-negative product lifecycle

Maintenance-free & UV resistant with 25-year power warranty.

Solar Facade

Customization meets performance with eFacade PRO+

eFacade PRO+ by Mitrex is a highly customizable building-integrated photovoltaic (BIPV) system that enables architects and developers to realize any facade concept—without compromising on solar performance. PRO+ is designed to support unique project requirements, whether you’re building with complex geometries, specific color palettes, or non-standard system types.

Each panel is engineered to deliver up to 18W/ft² of solar generation, while allowing complete freedom in dimensions, shapes, and finishes. With compatibility across ventilated rainscreens, unitized curtain walls, and prefabricated facade assemblies, eFacade PRO+ adapts to the most advanced and demanding architectural applications.

Building with our product
Taza Marketing Centre, 2025
See Case Study

Features

What makes eFacade PRO+ different

Custom Aesthetics
Custom Aesthetics

With no design limitations, eFacade PRO+ offers an unlimited range of color options, shapes, graphic overlays, and surface textures such as satin, matte, glossy, and wood grain. Each facade can be tailored to meet unique architectural branding or design requirements.

Sizes & Shapes
Sizes & Shapes

eFacade PRO+ can be fabricated in virtually any size or geometry, with large format options  with single panels up to 125 x 80 in, and the option for even larger preassembled pieces up to 35ft long. It supports a wide range of shapes including tilted panels, rectangles, triangles, curves, monolithic assemblies, and integrated corner panels.

Sustainability
Sustainability

The PRO+ system supports long-term carbon reduction by producing clean electricity and using recyclable materials with low embodied carbon. It is designed to help projects meet LEED, Passive House, and any other sustainability criteria.

Certifications
Certifications

eFacade PRO+ is tested to meet or exceed major global building codes. It complies with EN 13501 A2-s1,d0 and NFPA 285 for fire safety, ASTM E1996 for impact resistance, ASTM E330 for wind loads, and UL 61730 and UL 61215 for solar performance.

Fire Safety
Fire Safety

The panels are constructed with non-combustible glass and a tested backing system, meeting stringent fire safety requirements for facade systems across global jurisdictions, including EN 13501 A2-s1,d0 for fire classification, NFPA 285 for fire propagation.

Performance
Performance

eFacade PRO+ is engineered for long-term durability in outdoor environments. It undergoes testing for UV resistance, temperature fluctuations, and mechanical impacts, and operates effectively between -40°C and +85°C.

Maintenance
Maintenance

Featuring self-cleaning glass and corrosion-resistant materials, PRO+ requires minimal upkeep. Its sealed photovoltaic integration supports long-term reliability and is backed by a 25-year power performance warranty.

Installation Systems
Installation Systems

eFacade PRO+ is available with rainscreen systems, ready-for unitized or stick-built cladding, prefabricated wall systems, ready-for curtain wall installation, slab-to-slab connections that are comparable to precast concrete systems, and insulated wall panel system.

Incentives
Incentives

Projects using eFacade PRO+ may qualify for a range of sustainability incentives, including government rebates, green energy grants, and low-cost financing options available in various regions across North America.

Building with our product

Colors

Solar in any color, pattern, or texture

There are no restrictions when it comes to design. eFacade PRO+ is available in any color, pattern, texture, shape, or size. Whether your project demands matching RAL, Pantone ®, a custom branded color, or natural materials, every facade becomes a canvas for solar power, offering complete visual freedom with built-in energy generation.

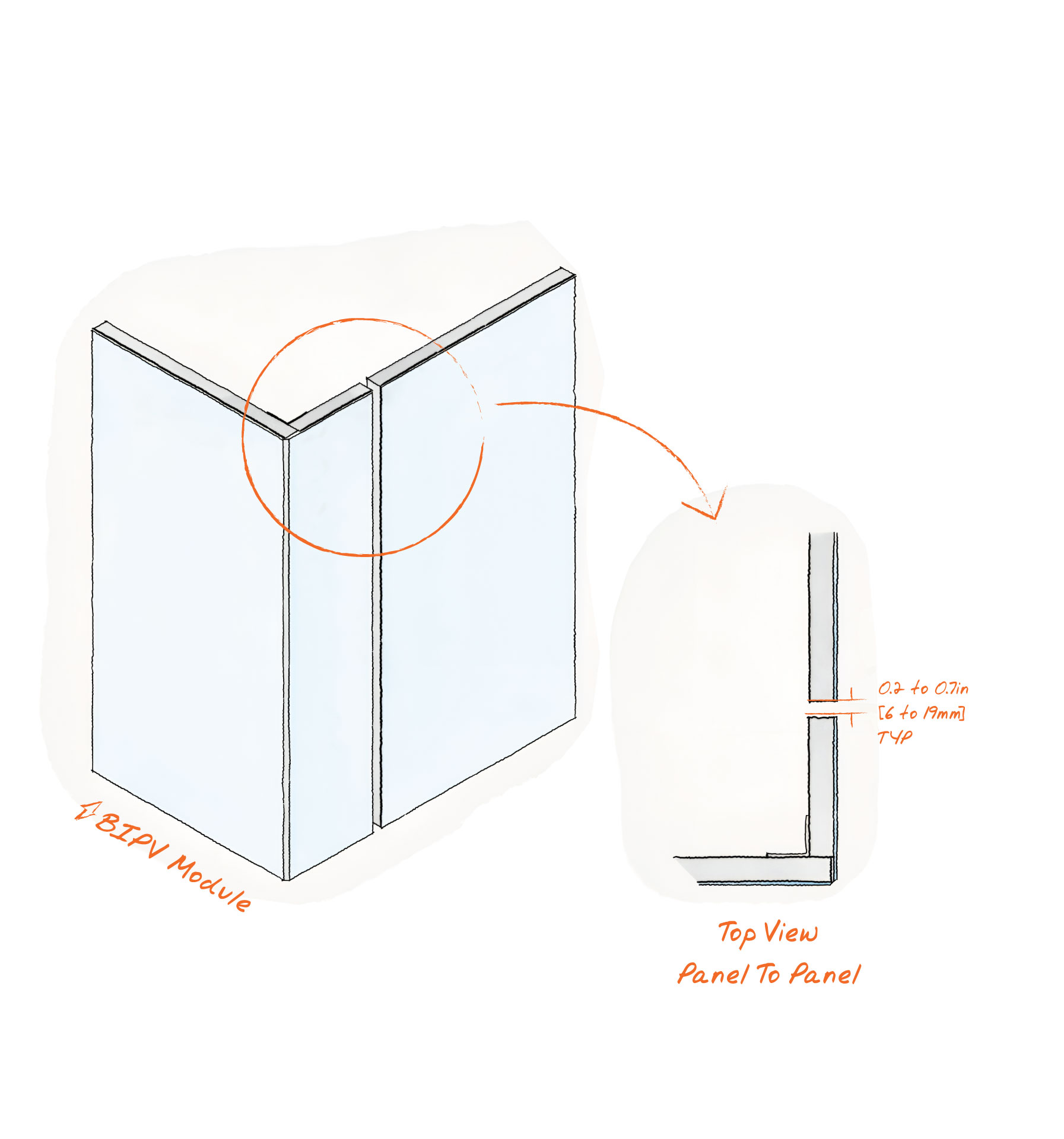

Details & Returns

Designing finishes.
Finished with perfection

Our panel edge closures and return options are as versatile as your imagination, ensuring that every detail of your design is executed with precision.

Comparison

Outstanding performance for ventilated facades

Fire Resistant

All finishes are classified as A2-s1-d0 under EN 13501 standards, with additional testing completed to meet NFPA 285, S134, and other international fire safety standards.

Impact Resistant

eFacade PRO+ panels are engineered to withstand impacts from external forces and environmental stressors, tested in accordance with ASTM E1996 impact standards and UL 61730 safety standards for solar panels, ensuring long-term durability and protection.

Maintenance-Free & UV Resistant

High-quality surface treatments eliminate the need for ongoing maintenance. eFacade PRO+ panels are designed to withstand extreme UV exposure and weather conditions without degradation.

Technical Specs

Product details

Sizes

eFacade PRO+ with Aluminum Honeycomb Backing

eFacade PRO+ with Extruded Aluminum Profile

Imperial
Metric

Size

Customizable single piece sizes up to 125in x 80in

Preassembled pieces up to 420 in long

Customizable single piece sizes up to 3175mm x 2032mm

Preassembled pieces up to 10.7m long

Weight

3.20–4.00 lb/sqft

15.6-19.5 kg/sqm

Glass Thickness

0.13 in, 0.16 in, 0.24 in, 0.31 in

3.2mm, 4mm, 6mm, or 8mm

Backing Options

1in or 2in Aluminum honeycomb, or Extruded aluminum profile

25.4mm, or 50.8mm Aluminum honeycomb, or Extruded aluminum profile

Power Range

18W/sqft

Refer to color for individual powers.

Up to 196W/m2

Refer to colors for individual powers.

System

Customizable. Ventilated rainscreen, Unitized facade, Prefabricated wall system

Customizable. Ventilated rainscreen, Unitized facade, Prefabricated wall system

Colors

Unlimited

Unlimited

Glass Finish

Super satin, satin, matte, glossy, wood grain, aqualite, and more.

Super satin, satin, matte, glossy, wood grain, aqualite, and more.

Composition

Product layers drawing

Product layers drawing

Corners

See details & returns section

See details & returns section

System

High-Performing Systems. Made for You.

Mitrex offers rainscreen systems, ready-for unitized or stick built cladding, prefabricated wall systems, ready-for window wall installation, slab-to-slab connections that are comparable to precast concrete systems, and insulated wall panels—all solar, all made in Canada. Whatever the project, we have a solution for you.

CladiShield
Rainscreen System

Schematic representation of the systemRepresentation of the system

Claditized
Unitized System

Schematic representation of the systemRepresentation of the system

CladiFab
Prefab System

Schematic representation of the systemRepresentation of the system

Comparison

Compare our systems

System Render
LITE
PRO
PRO+

eFacade LITE

eFacade PRO

eFacade PRO+

System Render
Example of the System Render CladiShield
Example of the System Render Claditized
Example of the System Render CladiFab
Colors & Patterns
Variety
5 color options
48 color options
Unlimited color options & patterns
Facing
Lightweight Panel System
Lightweight Panel System
Lightweight Panel System
Finish
Satin glass
Satin glass
Super satin, satin, matte, glossy, wood grain, aqualite, and more.
Thickness
0.24in (6mm)
0.24in (6mm)
0.13-0.47in (3.2-12mm)
Sizes & Weight
Panel Size
2 size options:

73in x 36in
(1854mm x 922mm)

73in x 18in
(1854mm x 456 mm)
Custom sizes up to:
80in x 39in
(2034mm x 994mm)

Minimum size of:
49in x 27in
(1245mm x 686 mm)
Customizable single piece sizes up to:
125in x 80in
(3175mm x 2032mm)

Preassembled pieces
up to:

420in long
(10.7m long)
System Weight
3.16 lb/sq ft
15.4 kg/sqm
3.19 lb/sq ft
15.6 kg/sqm
3.19 - 4.00 lb/sq ft
15.6 - 19.5 kg/sqm
Backing
Extruded aluminum profile with panel thickness of 1.3in (34mm)
Extruded aluminum profile with panel thickness of 1.3in (34mm)
Extruded aluminum profile with panel thickness of 1.3in (34mm).

Aluminum honeycomb with 1 or 2 in (25 or 50mm) thickness excluding facing.
Shapes
Rectangle
Rectangle
Customizable Shapes: Rectangle, triangle, circle, and more
System
Lightweight Panel System
Ventilated rainscreen system, eFacade LITE system
Ventilated rainscreen system
Customizable rainscreen, unitized or prefabricated system options
MOQ
150 SF (13.9 sqm)
500 SF (46.4 sqm)
5,000 SF (464.5 sqm)
Testing
3rd party tested
3rd party tested
3rd party tested
3rd party tested
Code-compliant &
safety tested
Code-compliant &
safety tested
Code-compliant &
safety tested
Code-compliant &
safety tested
Fire tested
Fire tested
Fire tested
Fire tested

Resources

eFacade PRO+

*For password protected files, please send us an email to gain access at info@mitrex.com
Brochures & Data Sheets
Specifications
CladiShield Rainscreen System
Claditized Unitized System
Cladifab Prefab Wall System
Testing
Installation Handling & Maintenance
Warranty
Mitrex Vertical Installation Report
7455.9kb
PDF
Mitrex Solar Facade Installation Manual
1565.9kb
PDF
Mitrex Solar Facade Handling & Unpacking Guidelines
6006.3kb
PDF
Mitrex Solar Facade Cleaning Guidelines
1336.7kb
PDF
Mitrex CladiShield Logistics & Planning
6470.7kb
PDF
Mitrex Specs Rainscreen Canada, Mitrex CladiShield Specs - Canada
698.7kb
DOCX
Mitrex Warranty 1-Pager (Supply, Install)
80.5kb
PDF
