Angled BIPV architectural panels designed to add another dimension to your building facade.
Up to 15W/SF of integrated energy generation.
High-performing ventilated rainscreen system.
World’s first
fire-tested BIPV: NFPA 285 & EN 13501.
Modular & adjustable angled BIPV panels with easy installation.
Carbon-negative product lifecycle
Maintenance free
& UV resistant.
.png)
Solar Facade

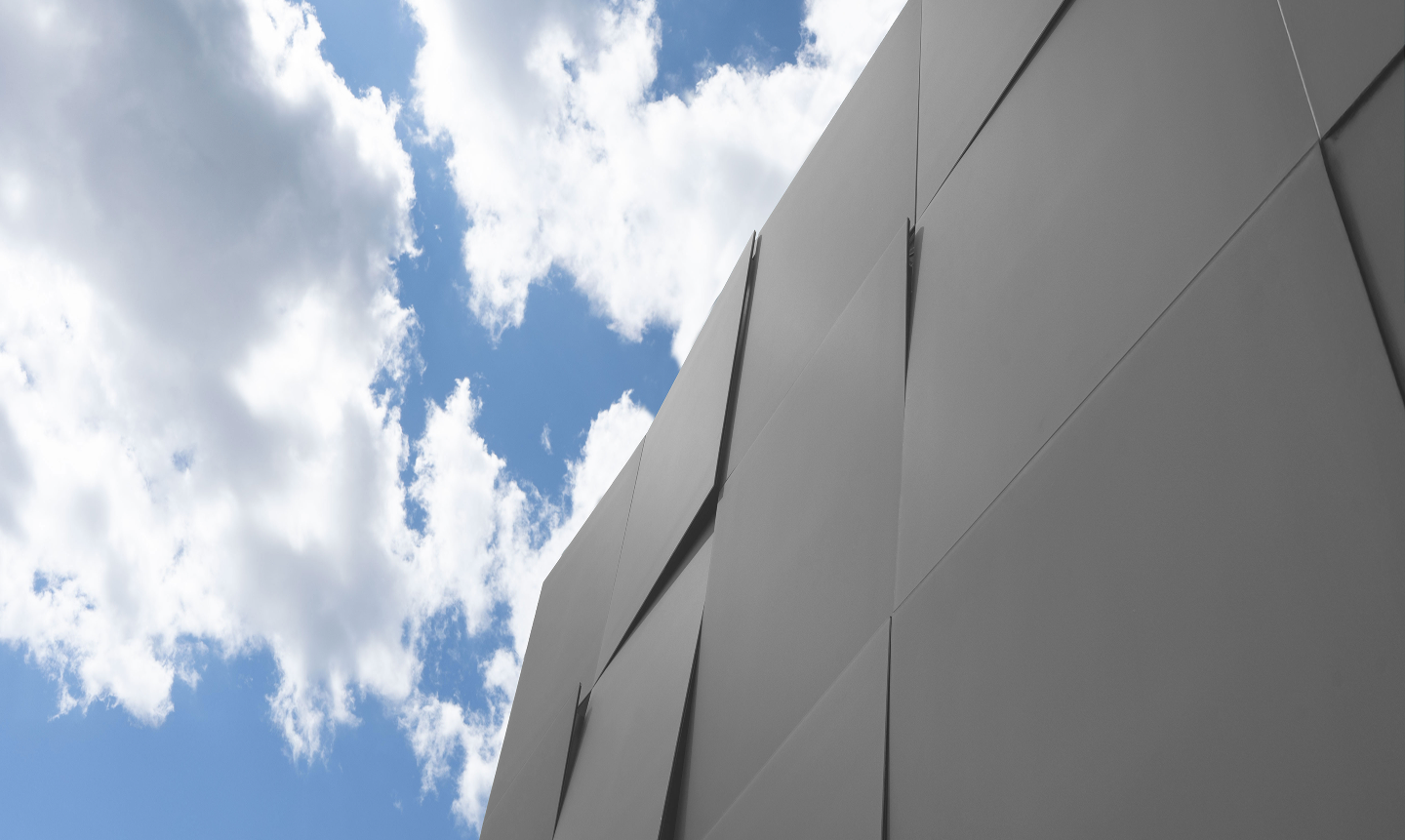

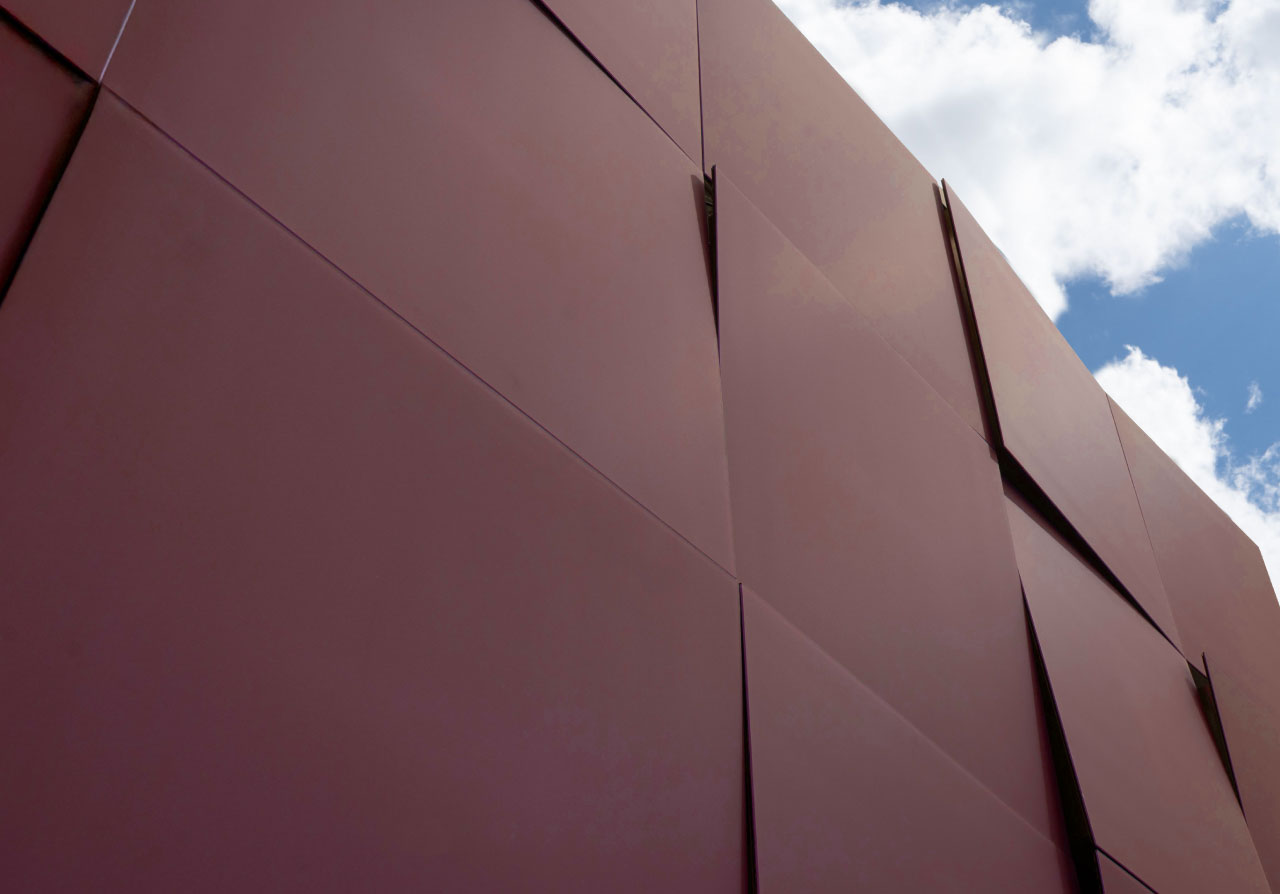

eFacade TILT by Mitrex utilizes building-integrated photovoltaics (BIPV) to create an angled rainscreen facade solution. Each 37 × 37 inch panel is tilted off the building face using custom mounting hardware that adds depth to the building envelope. The angular design introduces dynamic shadows across the wall—delivering powerful aesthetics and power generation in one integrated system.
eFacade TILT uses a dual-glass build consisting of a tempered glass facing layer with interchangeable colors, and a tempered glass backing. Between them are high-efficiency monocrystalline solar cells laminated into a durable panel structure. Architects can specify any combination of the 23 available standard colors to create bold gradients, or uniform facades.
Features
Each eFacade TILT module delivers strong energy output using monocrystalline solar cells laminated within dual-glass construction. Energy production depends on sun exposure, building orientation, tilt angle, and local irradiance, reaching up to 15 W/ft² (160 W/m²) under optimal conditions.
With a unique tilted profile and 23 curated colors, eFacade TILT transforms vertical walls into dynamic design elements. The angled panels are available in sizes of 37 x 37 in, and can be individually flat-mounted with a system thickness of 3.58 in (90.9 mm) or angle-mounted with a range of 2.6-5.5 in (66.2-139.8mm) depth to add dimension to an otherwise flat facade.
Designed for streamlined installation, eFacade TILT comes with custom mounting hardware that ensures alignment and durability while maintaining ventilated rainscreen functionality. This design optimizes thermal performance, reduces moisture accumulation, and enhances the overall durability and energy efficiency of the building envelope.
As part of our mission to reduce the carbon footprint of the built environment, eFacade TILT combines energy generation with recyclable components, low embodied carbon, and efficient material use.
Engineered to meet international impact, building code, solar, and fire standards, Mitrex systems meet safety standards including UL 61730, ASTM E1996 for impact resistance, and ASTM E330 for wind load performance.
Mitrex eFacade TILT meets stringent fire performance requirements including NFPA 285, EN 13501 A2-s1,d0 fire classification, S134, and is engineered with non-combustible materials that support global fire safety certifications.
eFacade TILT is built with premium materials and rigorously tested to ensure exceptional durability. The system is engineered to withstand extreme weather, UV exposure, and thermal stress, making it an ideal solution for high-performance buildings across all climates.

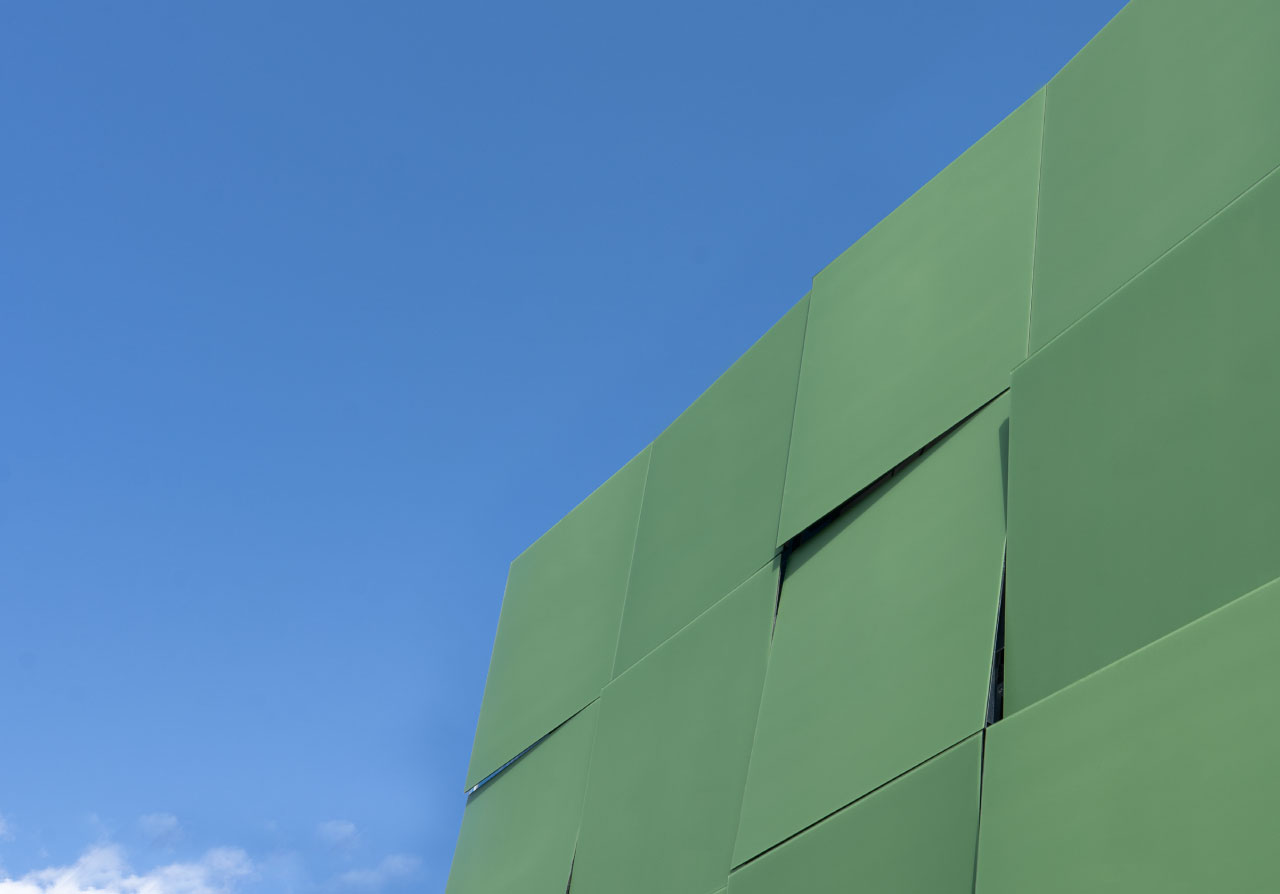

Designed with longevity in mind, the eFacade TILT system resists dirt accumulation and fading. With self-cleaning glass and long-life materials, eFacade TILT requires minimal upkeep. Panels are UV-resistant, corrosion-proof, and come with a lifetime warranty.
Projects using eFacade TILT may qualify for a range of sustainability incentives, including government rebates, green energy grants, and low-cost financing options available in various regions across North America.

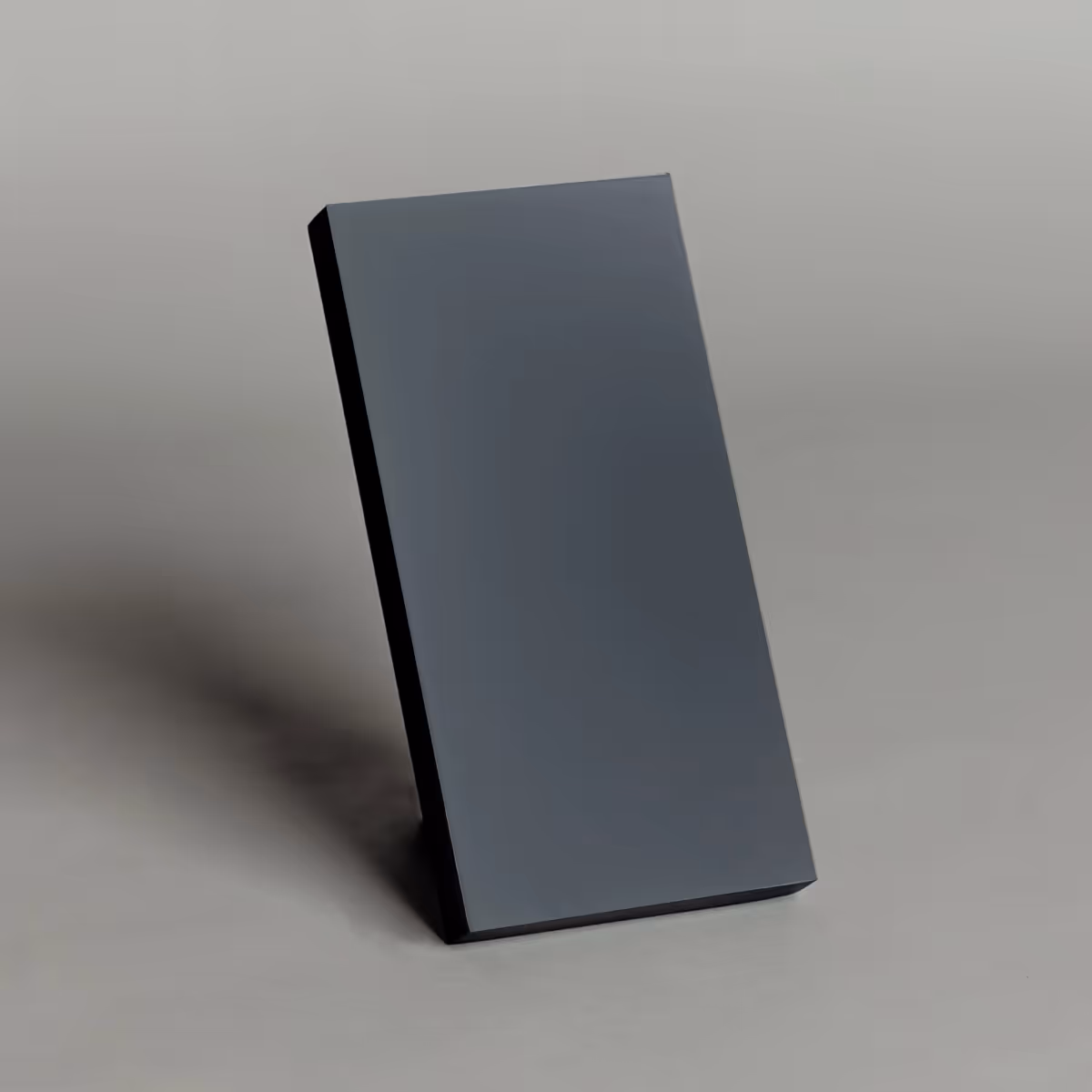

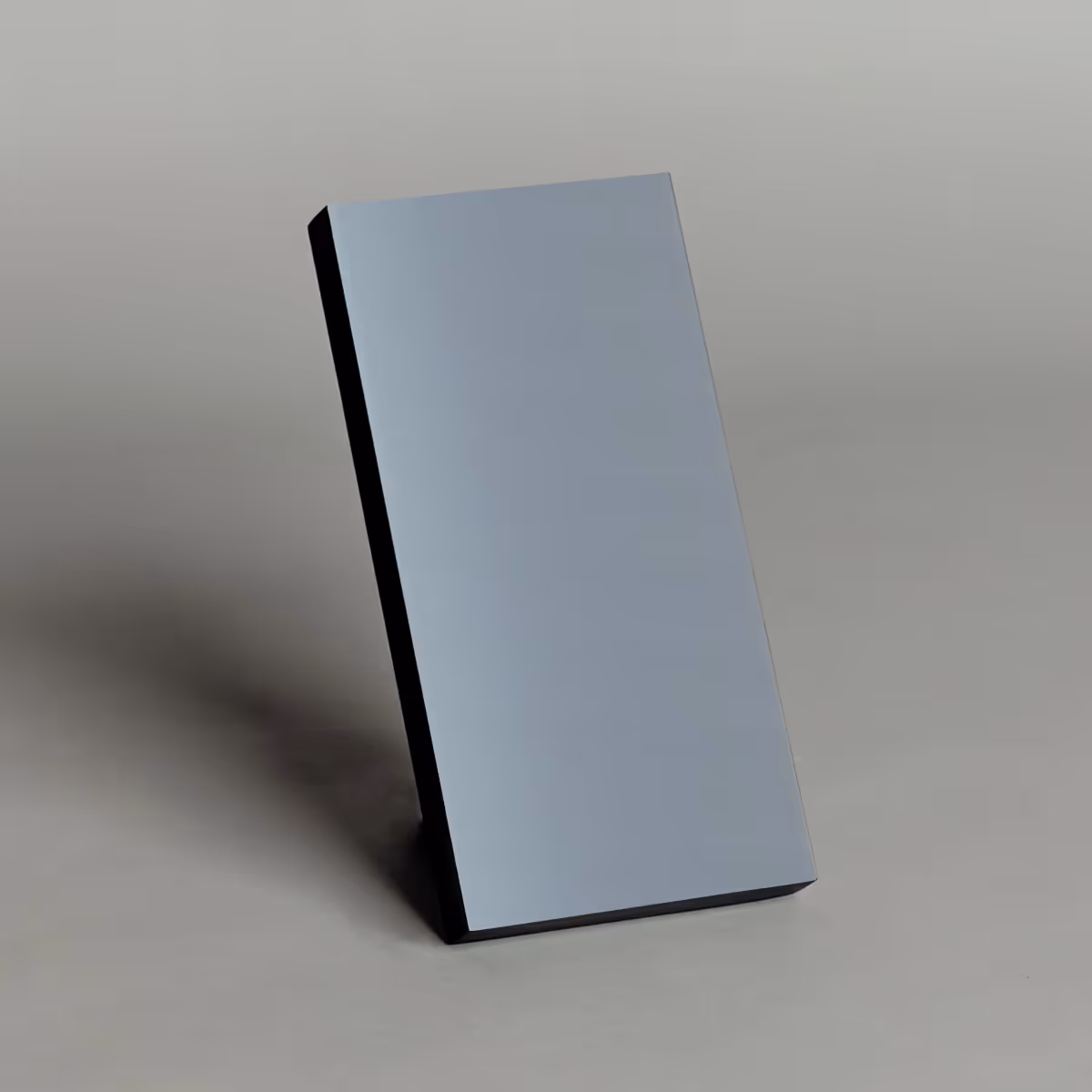

Colors

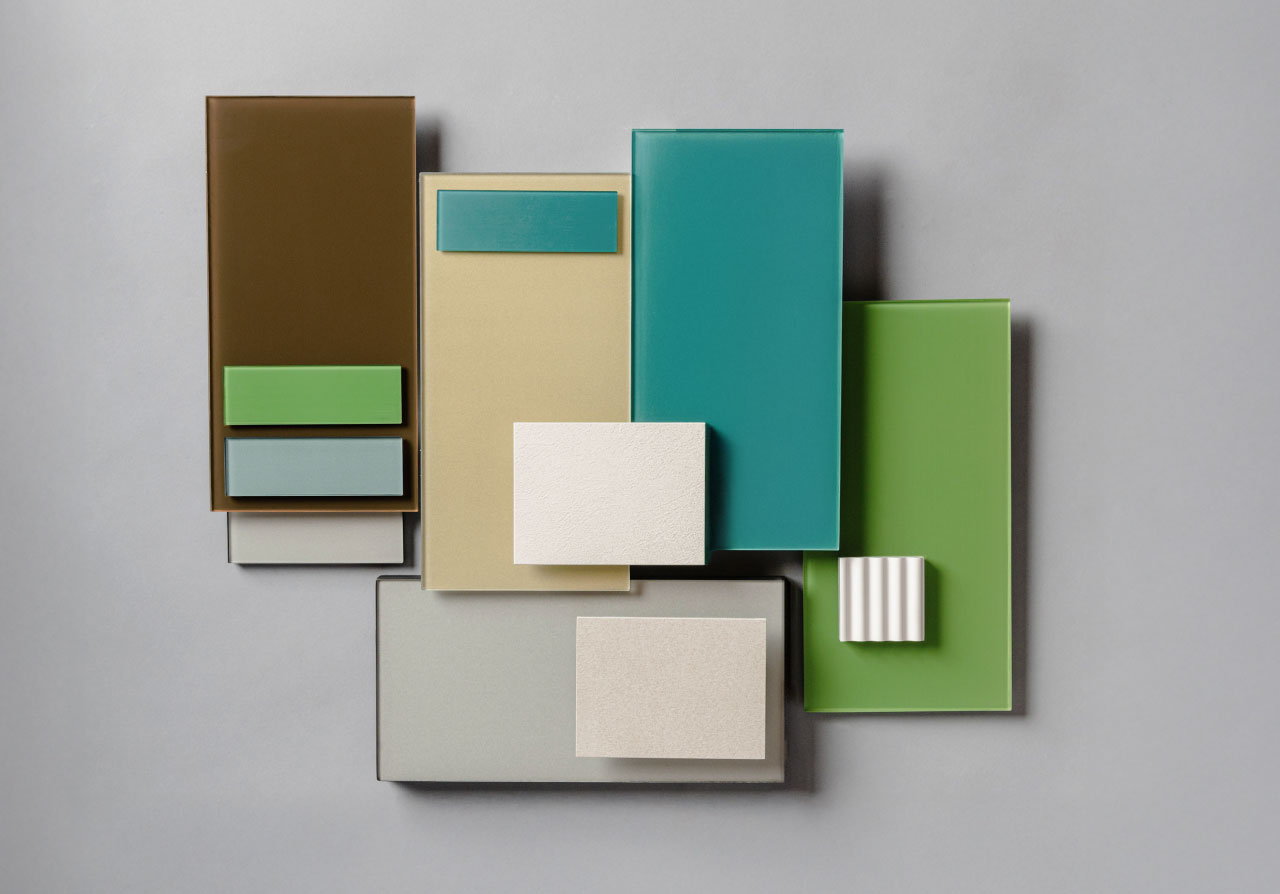

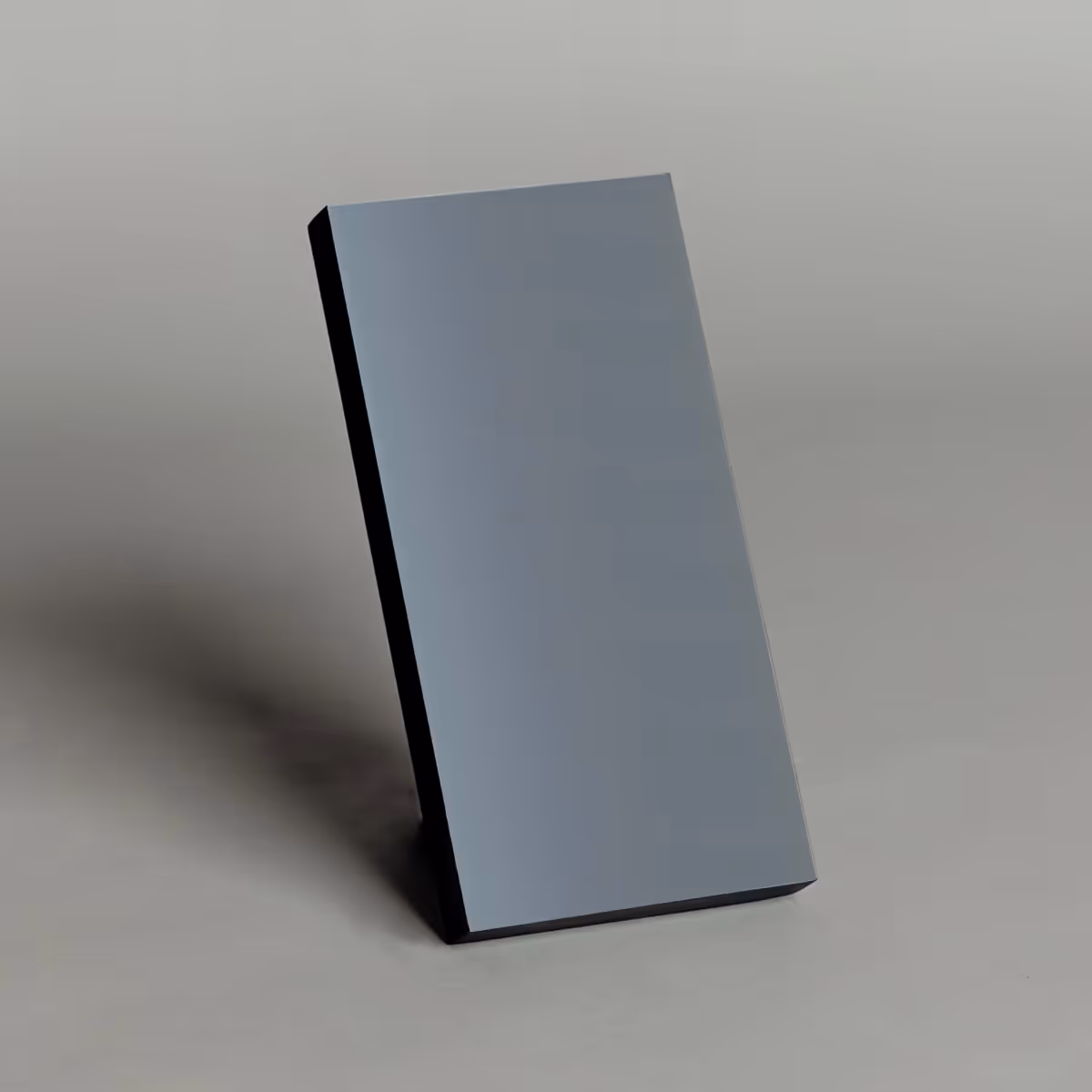

Available in 23 standard colors, eFacade TILT provides a versatile design palette for uniform facade aesthetics, shading, or gradients. The glass surface treatment ensures lasting vibrancy, UV resistance, and seamless color uniformity.
Balancing cutting-edge innovation with efficiency, our designs conceal solar technology in plain sight while maximizing energy output with edge-to-edge panels and hidden wiring. Architects now have the freedom to integrate solar without compromising aesthetics, creating buildings that are as powerful as they are beautiful.

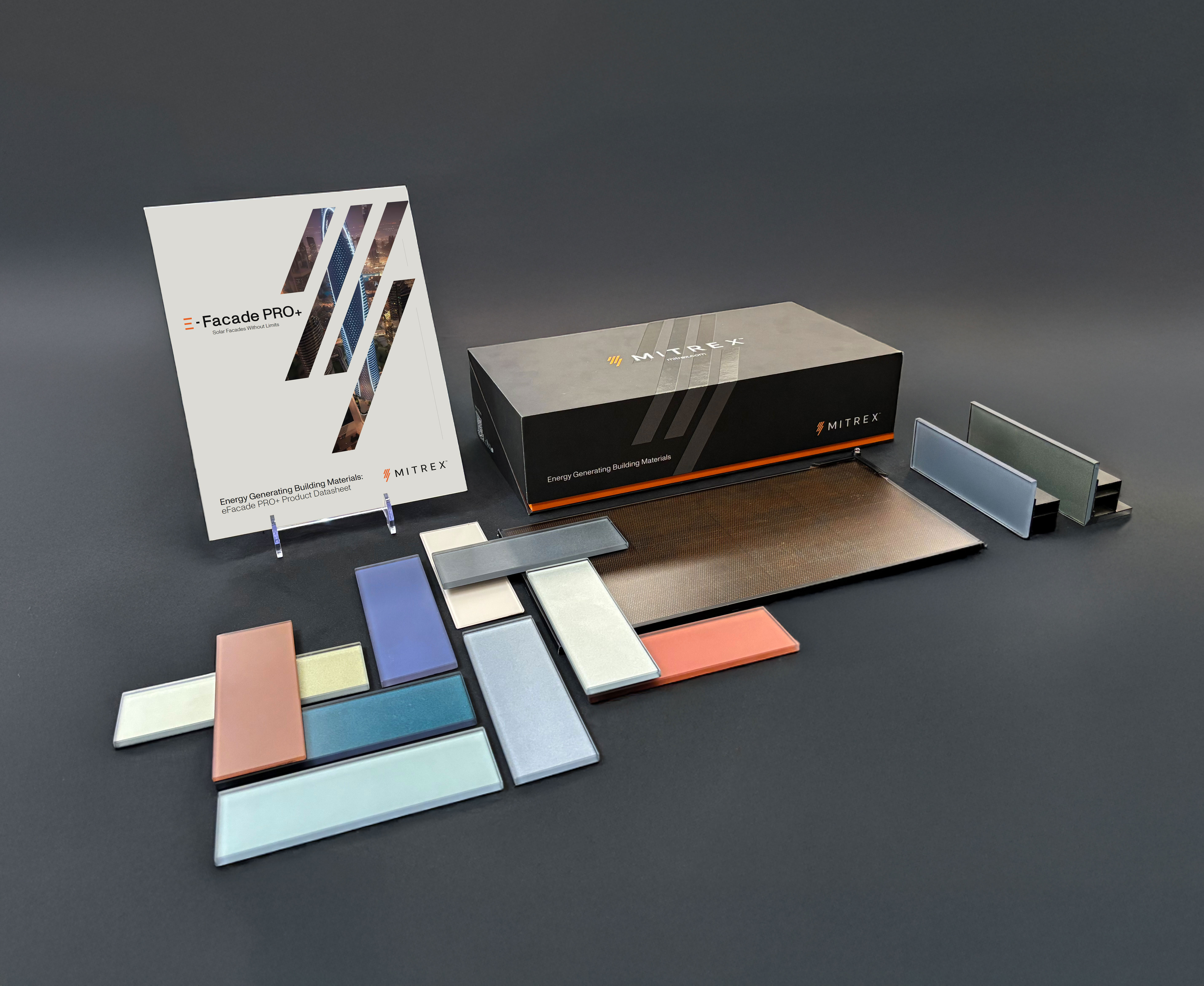

Note: To request a sample, simply select a color and click on the “Add Sample” button. You can order as many samples as needed.
Comparison
Fire Resistant
All finishes are classified as A2-s1-d0 under EN 13501 standards, with additional testing completed to meet NFPA 285, S134, and other international fire safety standards.
Impact Resistant
eFacade TILT panels are engineered to withstand impacts from external forces and environmental stressors, tested in accordance with ASTM E1996 impact standards and UL 61730 safety standards for solar panels, ensuring long-term durability and protection.
Maintenance-Free & UV Resistant
High-quality surface treatments eliminate the need for ongoing maintenance. eFacade TILT panels are designed to withstand extreme UV exposure and weather conditions without degradation.
.svg){kind=small}
Technical Specs

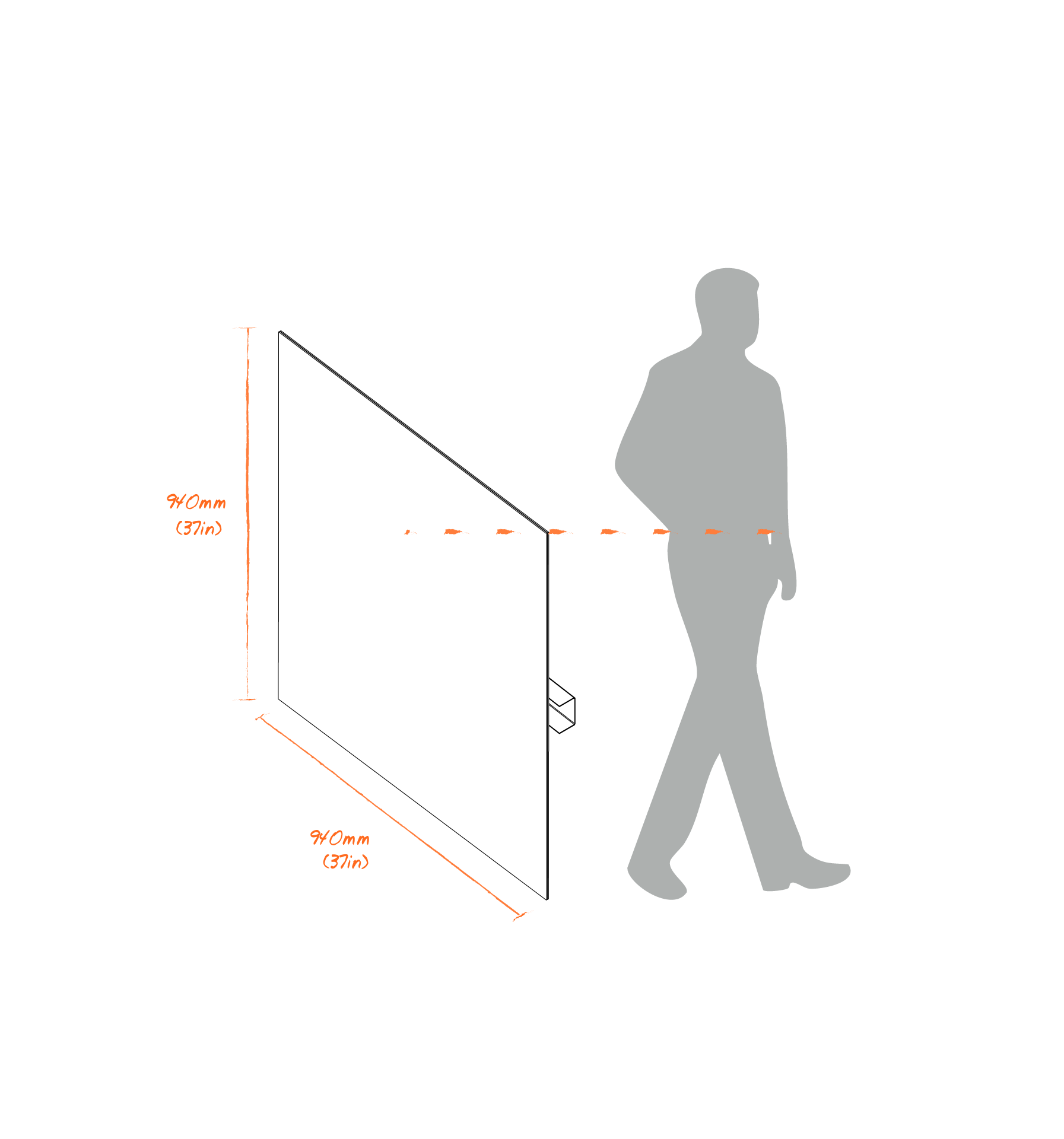

Size
37 x 37 in
940 x 940 mm
Weight
4.05 lb/SQFT
19.8 kg/sqm
Panel Thickness
0.3 in
7.5 mm
Power Range
15 W/ft2
Refer to colors for individual powers
Up to 160W/sqm.
Refer to Colors for individual powers.
Panel Thickness
0.3 in
7.5 mm
System Thickness
2.6-5.5 in
66.2-139.8mm
Colors
23 colours
23 colours
Glass Finish
Satin
Satin
Rainscreen System

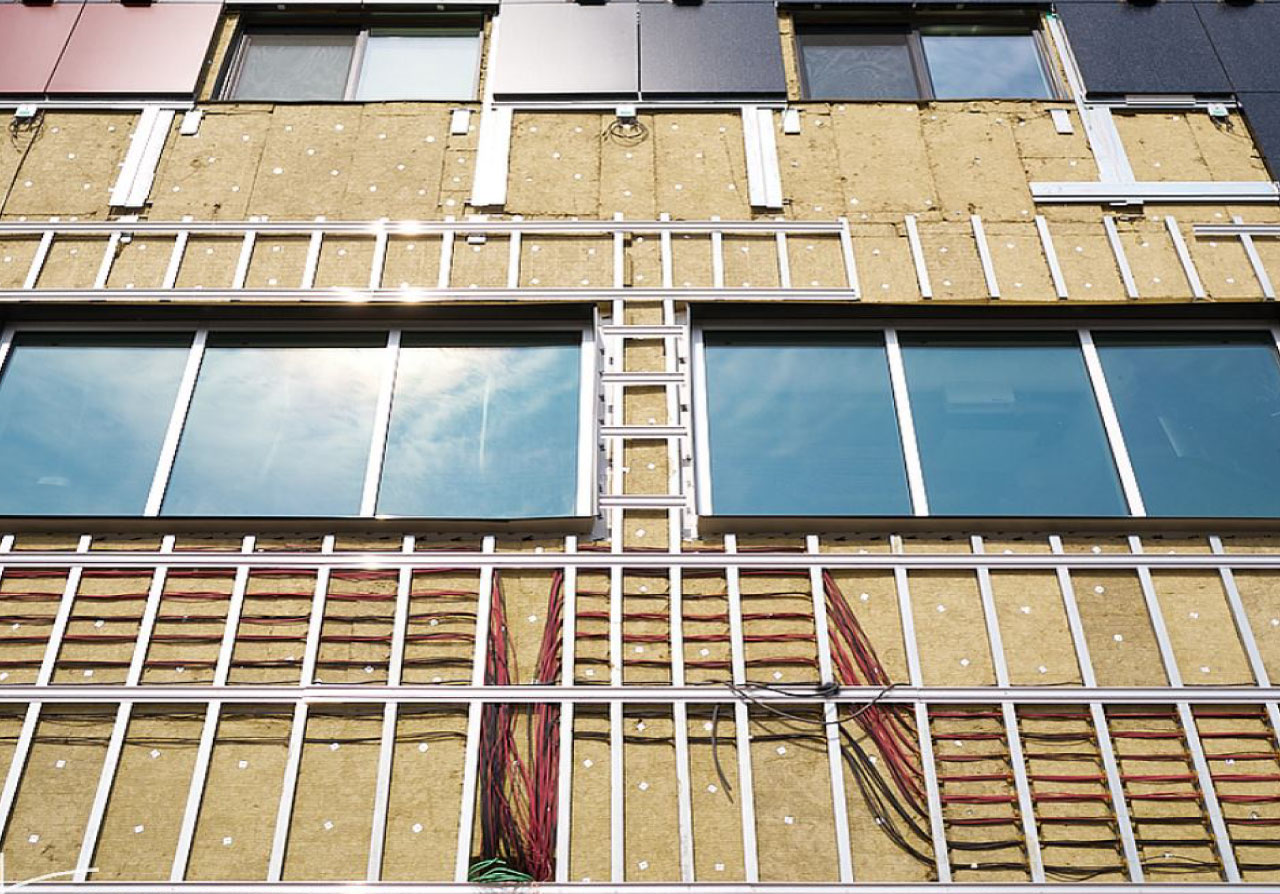

Mitrex eFacade TILT features a ventilated rainscreen system that includes a high-performing air and moisture barrier, continuous insulation, adjustable sub-framing systems, and our exceptional multi-facing cladding panels.
The concealed wiring is meticulously integrated behind each panel, providing a seamless energy flow. Experience the power of solar energy in its most refined form, where every detail is crafted with precision and every line tells a story of invisible power.
Comparison
Projects
Each of our projects is a story of innovation and sustainable architecture.
